ALPHA Polycrystalline Diamond (PCD) Nozzle

Engineered For Extremes

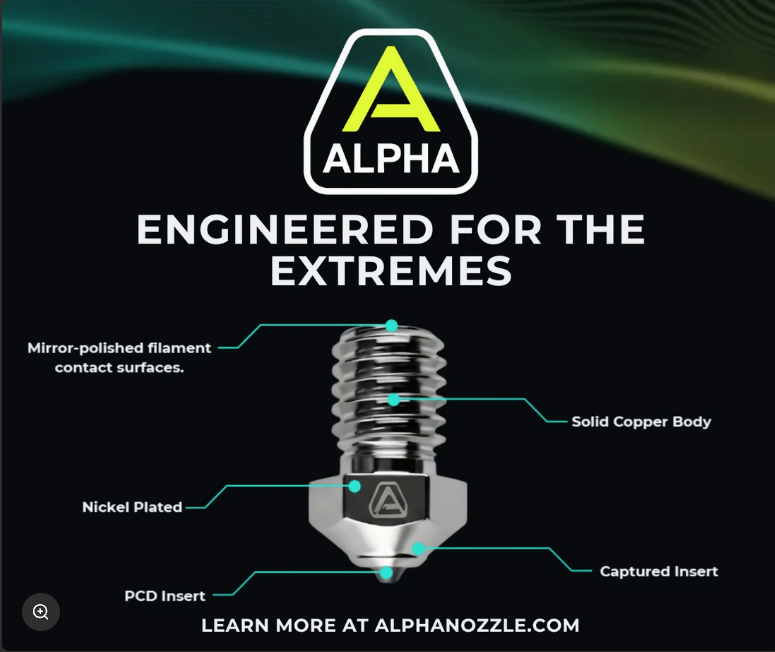

ALPHA nozzles feature an encapsulated polycrystalline diamond insert with a smooth nickel-plated copper body. This premium combination provides advantages over standard nozzles in thermal conductivity, hardness, maximum printing temperature, thermal expansion, and friction.

212% Harder Than Tungsten Carbide

For years, tungsten carbide has been regarded as the top choice material for abrasive material printing. Now, PCD is here to take the crown with a hardness of 5000 (Vickers HV), making the Alpha nozzle overqualified for printing the most demanding materials.

97.5% Less Friction Than Nickel

Clogs and inconsistent flow kill uptime. ALPHA combines the ultra-low friction coefficient of PCD (0.01) with an internal mirror-polished finish to help filament feed smoothly through the melt zone—reducing buildup and improving reliability.

30% Higher Heat Transfer Than Copper

Put heat where it matters most—right at the point filament exits the nozzle. With PCD thermal conductivity up to 500 W/m·K, ALPHA provides exceptional heat transfer, improving melt stability, flow consistency, and high-speed performance.

Key Product Specifications

Nozzle Material: Encapsulated PCD tip + Nickel-plated copper body

Filament Compatibility: All standard + highly abrasive filaments

Max Temperature: 500°C+ (ready for high-temp engineering materials)

Supported Form Factors: V6, Prusa, K1C, K2P, Qidi Plus4

Ideal Use Cases: High-speed printing, production workloads, abrasive filament printing

Material Comparison (Performance at a Glance)
